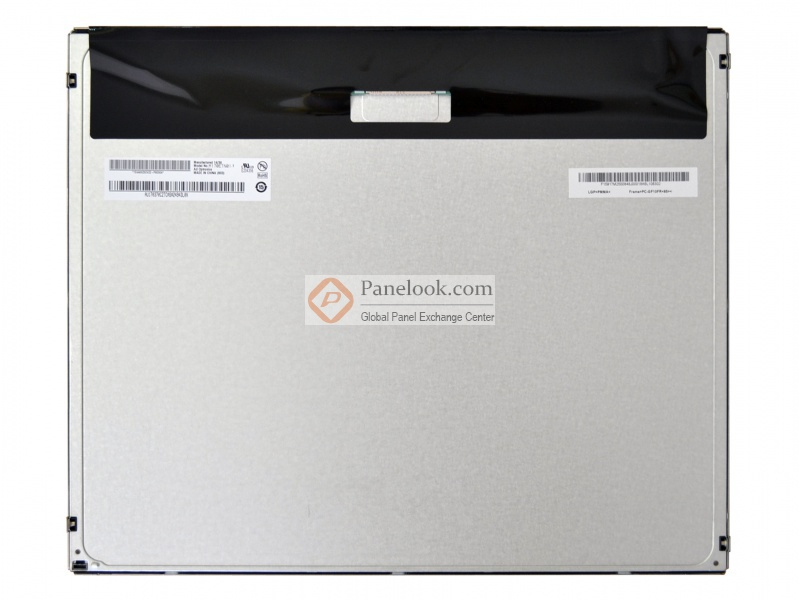

AUO M170ETN01.1 Mechanical Details

• Number of Pixel
• 1280(RGB)×1024 [SXGA]
• Arrangement
• RGB Vertical Stripe
• Dot Pitch(W×H)
• 0.088×0.264 mm
• Pixel Pitch(W×H)
• 0.264×0.264 mm [96PPI]
• Active Viewing
• 337.92(W)×270.336(H) mm
• Overall Dim.
• 358.5(W)×296.5(H) mm
• Bezel Opening
• 341.72(W)×274.14(H) mm
• Overall Depth
• 7.7/10.8 (Typ./Max.) mm
• Form Shape
• Flat Rectangle
• Orientation
• Landscape type
• Aspect Ratio(W:H)
• 5:4
• Shape Style
• Normal bezel
• Fixation
• Side mounting holes (4-M3) on left, right bezel
• Mass
• 1.27Kgs (Typ.)
• Surface
• Antiglare, Hard coating (3H)

AUO M170ETN01.1 Optical Details

• Luminance
• 250 cd/m² (Typ.)
• Contrast Ratio
• 1000 : 1 (Typ.) (Transmissive)
• Good View at
• 6 o'clock
• Response Speed
• 3.8/1.2 (Typ.)(Tr/Td) (ms)
• Viewing Angle
• 85/85/80/80 (Typ.)(CR≥10)
• Operating Mode
• TN, Normally White, Transmissive
• Chromaticity
• Wx:0.313; Wy:0.329
• Support Color
• 16.7M (6-bit + Hi-FRC)
• Color Temperature
• 6485K
• White Variation
• 1.25/1.33 (Typ./Max.)(9 points)
• NTSC Ratio
• 73%
• sRGB
• 96% coverage
• Adobe RGB
• 74% coverage
• DCI-P3
• 76% coverage
• Rec.2020
• 54% coverage
• Remarks
• sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO M170ETN01.1 Electronics Details

• Refresh Rate
• 75Hz
• Reverse Scan
• No
• Power Consumption
• 8.1W (Typ.)
